Oak Grilles & Registers

Trimline Style - Surface Model

self rimming oak vent

Insert vents replace the metal register. Cleanly designed with a solid, self-rimming lip to conceal inexact cuts in your surface material. Adjustable damper also available in the sizes listed.

Click for... help in sizing wood vents


ORDER SIZE FREE AREA OVERALL DIMENSIONS
(Duct Opening Inches) (Square Inches)
2-1/2 x 10 9 3-15/16 x 11-7/16
2-1/2 x 12 11-1/4 3-15/16 x 13-7/16
2-1/2 x 14 13-1/2 3-15/16 x 15-7/16
4 x 8 11 5-7/16 x 9-7/16
4 x 10 15 5-7/16 x 11-7/16
4 x 12 18-1/2 5-7/16 x 13-7/16
4 x 14 22 5-7/16 x 15-7/16
6 x 10 24-3/4 7-7/16 x 11-7/16
6 x 12 31 7-7/16 x 13-7/16
6 x 14 37 7-7/16 x 15-7/16

The chart shows all stock sizes for common duct openings.

Red oak, white oak and maple (clear & paint grade) usually ship in 1-2 days.

All other woods including ash, cherry, and even bamboo ship in 3-5 days.  Click here for wood options.

Vents are sized by the duct openings not the face of the vents.  An attached metal damper is available for all stock size vents if needed.

Wood vents are available unfinished, clean sanded ready for on site finishing or pre-finished.

Optional factory finishing in "clear" natural or stained and sealed to match pre-finished manufactured floors.

Call 1-800-685-8263 or e-mail us at info@volko.com

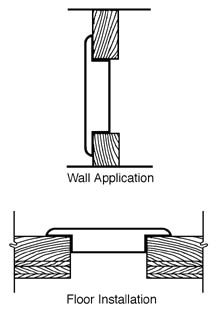

surface mount vent sketch

insert style wood vent sketch

We can help size and quote all your wood vent needs.  Including customs.

Mostly all wood vents are made 3/4" thick.   Insert vents are no different and have a routered 3/4" lip cut all around to create as flush an installation to the surface as possible.   Usually 1/4" thick.  See chart below.

Example.....  A rough cut or duct opening 4" by 10", in a wall or floor, can sometimes be irregular.  We use a 4x10 vent, with or with out a metal damper as long as the lip of the wood vent will cover and hide the opening totally.

For wall or ceiling  installations screw holes will need to be drilled in the "lip" of each vent.
