Original Style Oak Grilles & Registers
Discontinued as stock.
ONLY available as custom.
|
|
Original Style
Flush With Frame Model
|
|
|

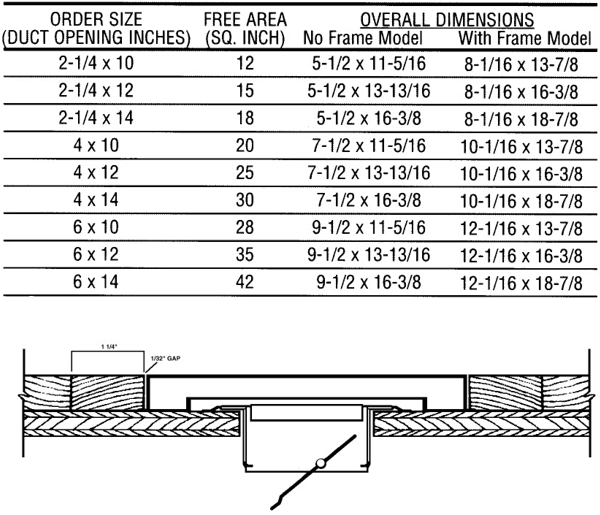

The original design is engineered to satisfy the
demands of professional floor layers. Each vent is built oversized to
cover a standard adjustable metal register installed on the subfloor.
The essential ability to control air flow is retained. The patented
design allows flush installation in a 3/4" floor. Fluted dowel
construction. Each vent is supplied with its own frame and complete
installation and finishing instructions. We strongly recommend using
12" vents on 10" duct openings for optimal air flow.
|
|
|
Original Style
Flush No Frame Model
|
|
As the name implies, the same vent as the flush with
frame model less the frame. Without a frame, this unit satisfies two
specific needs:
1. Permits retrofitting in existing 3/4" floors by routing out an
area the size of the wood vent and re-installing the metal register on
the subfloor;
2. Provides a less massive appearance than the framed model, and may be
trimmed even further by ripping up to 1/2" off each rail at the job
site. |
Use Trimline Flush
With Frame Wood Grilles
Click for
Trimline Flush WITH Frame Wood Vents
|
|
Slim, trim, flush styling with the
cleanest look possible for any wood floor. Seats flat on the subfloor. The lift-out vent
permits cleaning of the duct throat. Delicate looking, but tough.
Adjustable damper also available for stock sizes.
Click for...
help in sizing wood vents |
|
